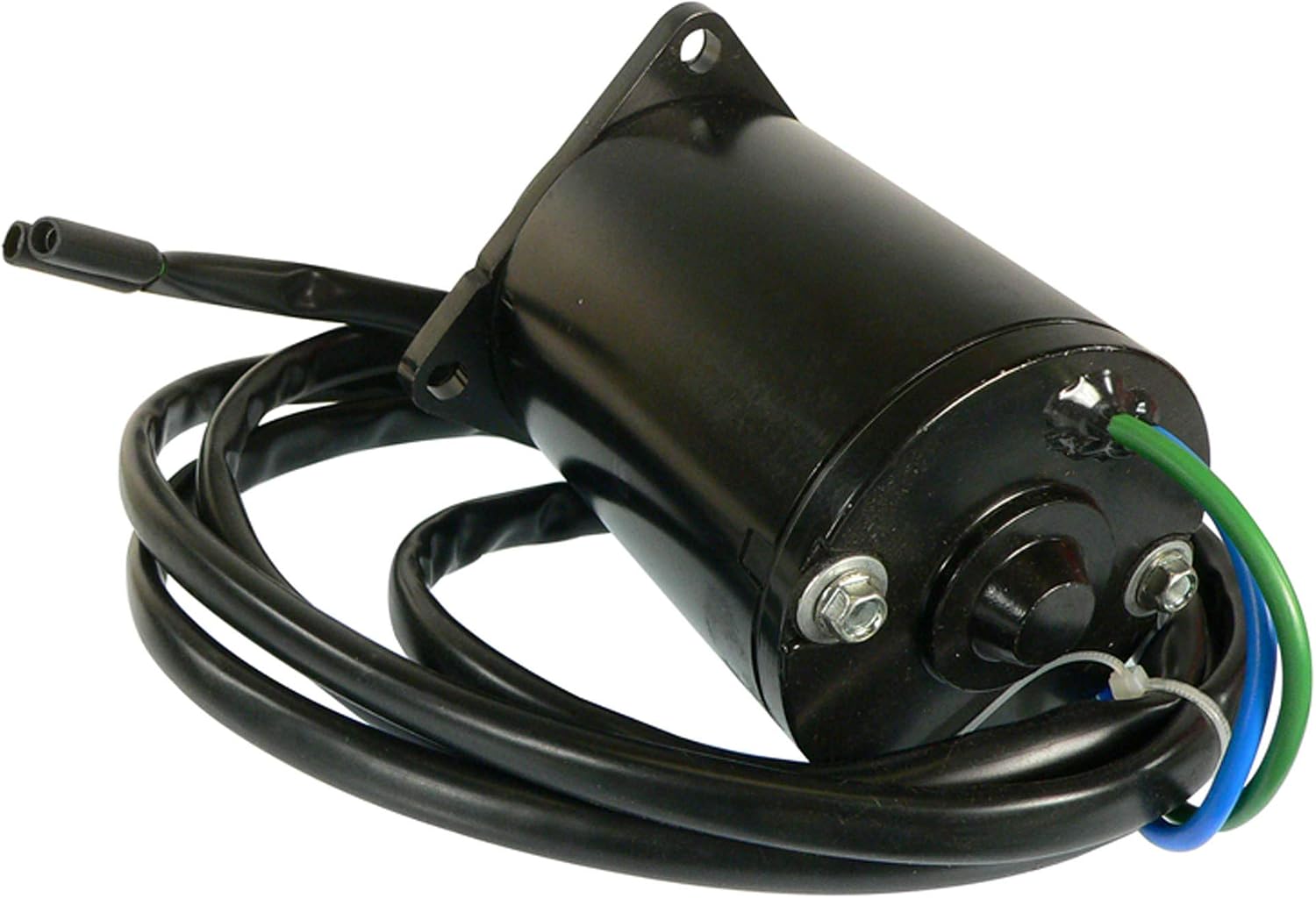

DB Electrical TRM0037 Power Tilt Trim Motor Compatible with/Replacement for Yamaha 50-115HP /6H1-43880-00-00 /PT609NM
Product details
| Management number | 228712184 | Release Date | 2026/05/31 | List Price | US$49.38 | Model Number | 228712184 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
**Verify the part fits before purchasing**Specs:Unit Type: Tilt & Trim MotorVoltage: 12Rotation: REDimension: Repl. Unit:, OD: 77.7mm, Shaft OD: 7.9mm, Length: 127.5mm, Term Size: (2) Butt Connectors, Shaft: 4mm W x 5.5mm H Tang, Notes:, 2-Wire Replaces 3-Wire OE Unit, 70.7mm Registration OD, Incl. O-Ring, Harness w/32V/30A Fuse & (2) 12V 20A/30A Relays, Brief: Yamaha 70-90HP Outboard Motors 1987-91Replaces OEM Numbers:API MARINE: PT609NMARCO MARINE: 6267ARROWHEAD: TRM0037EMP UnitS: 4-6259J & N: 430-22146LESTER: 10832, 10848QUICKSILVER: 8M6007571WAI: 10832NYamaha: 6H1-43880-00-00Compatible With/Replacement For:YAMAHA 70ETL 1987-1990, 70TLR 1991-1991, 90ETL 1987-1990, 90ETLJD 1987-1990, 90TJR 1991-1991, 90TLR 1991-1991, C85TLR 1991-1991, CV85EL 1990-1990, CV85ETL 1990-1990, P60TLH 1991-1991
- Specs: Tilt & Trim Motor, Voltage: 12, Rotation: RE, Dimension: Repl. Unit:, OD: 77.7mm, Shaft OD: 7.9mm, Length: 127.5mm, Term Size: (2) Butt Connectors, Shaft: 4mm W x 5.5mm H Tang, Notes:, 2-Wire Replaces 3-Wire OE Unit, 70.7mm Registration OD, Incl. O-Ring, Harness w/32V/30A Fuse & (2) 12V 20A/30A Relays, Brief: Yamaha 70-90HP Outboard Motors 1987-91
- Replaces OEM Numbers: API MARINE: PT609NM, ARCO MARINE: 6267, ARROWHEAD: TRM0037, EMP UnitS: 4-6259, J & N: 430-22146, LESTER: 10832, 10848, QUICKSILVER: 8M6007571, WAI: 10832N, Yamaha: 6H1-43880-00-00
- Compatible With/Replacement For: YAMAHA 70ETL 1987-1990, 70TLR 1991-1991, 90ETL 1987-1990, 90ETLJD 1987-1990, 90TJR 1991-1991, 90TLR 1991-1991, C85TLR 1991-1991, CV85EL 1990-1990, CV85ETL 1990-1990, P60TLH 1991-1991
- 1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
- 100% New Aftermarket Tilt & Trim Motor built to meet OEM specifications
| UPC | 701485537820 |
|---|---|
| ASIN | B019FNE6S4 |
| Model | 430-22146 |
| Voltage | 12 Volts |
| Brand Name | DB Electrical |
| Horsepower | 115 Horsepower |
| Model Name | DB Electrical-430-22146 |
| Item Weight | 4.5 Pounds |
| Part Number | 430-22146 |
| Manufacturer | DB Electrical |
| Included Components | Tilt Trim Motor |
| Warranty Description | 1-Year Warranty |
| Global Trade Identification Number | 00701485537820 |
